VIRIDYN 101-X is an electronic-grade fluoropolymer conformal nano coating for Printed Circuit Board Assemblies (PCBAs), LED assemblies, Ball Grid Arrays (BGAs), connectors, sensors and other sensitive electronic assemblies.
VIRIDYN 101-X is available in polymer concentrations ranging from 0.2%—20% in fluorosolvent. At a 2% polymer concentration, VIRIDYN 101-X creates a ~200 nanometer waterproof film that protects electronic assemblies against corrosion, chemicals, lubricating oils, and moisture.
VIRIDYN 101-X at a 2% concentration is an excellent replacement for 3M Novec 1700. The VIRIDYN 101-X family of electronic-grade coatings offers alternatives to several other products from the discontinued 3M Novec Electronic Grade Coatings range.
Masking of components is optional when using VIRIDYN 101-X, depending on the chosen polymer concentration.
No curing is required when using VIRIDYN 101-X. The coating is dry and fully functional within seconds to minutes after application.
VIRIDYN 101-X PC contains an optional UV tracer for visual quality control.
VIRIDYN 101-XP-300 and VIRIDYN 101-X-DA are PFAS-free electronic-grade coatings that are alternatives to VIRIDYN 101-X.

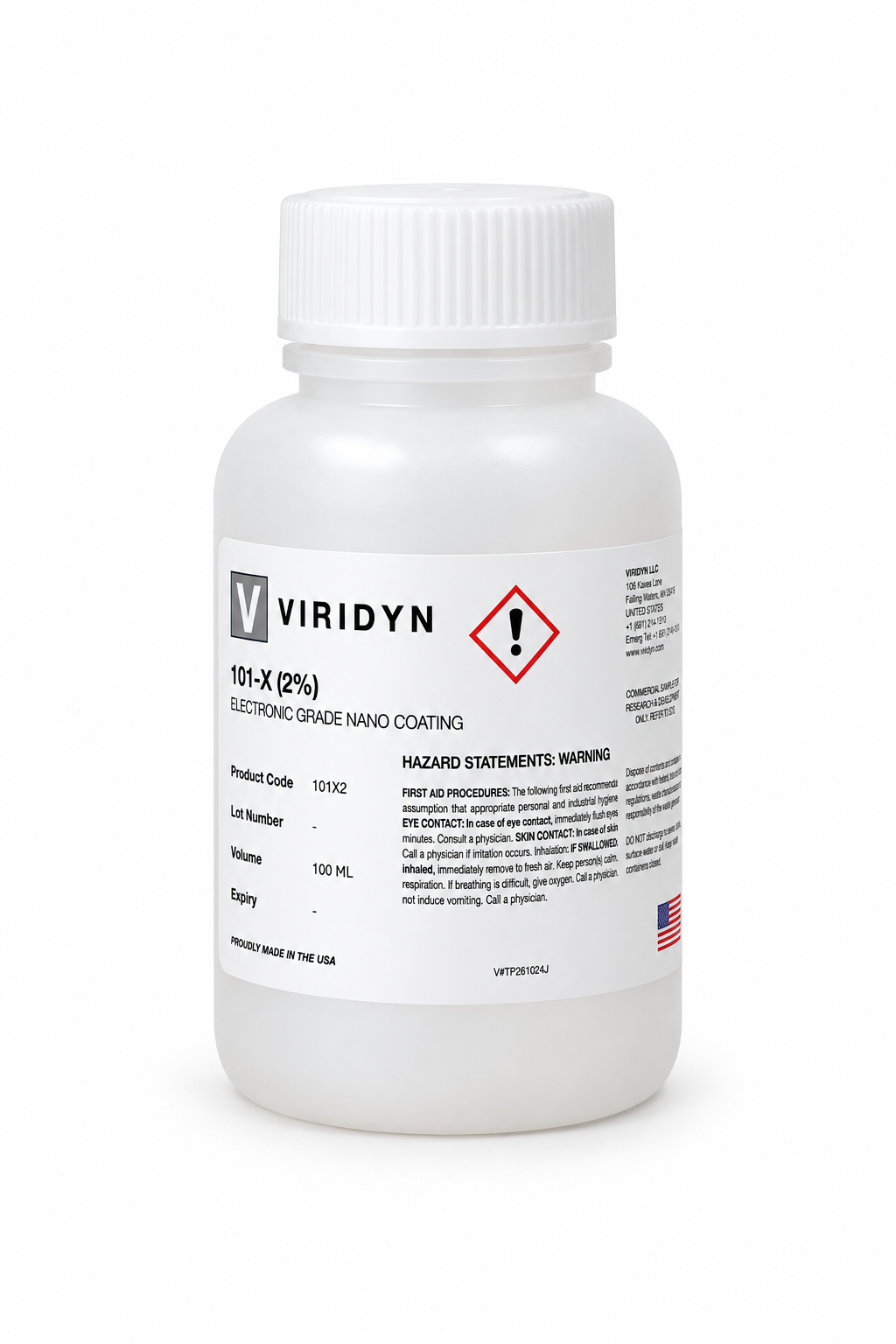

Sample Size: 100 ml
Key Properties:
Ultra-thin (~0.2 µm), low-surface energy, transparent film
RF-Transparent
Excellent anti-moisture, anti-corrosion properties
Excellent thermal stability (-50°C to +175°C, 1 hr max @ 250°C)
UV light resistant (minimum 10 years)
Protects against solvents, lubricating oils, silicones
Protects against dust, exhaust fumes, humidity, salt-fog, pollutants
Not electrically conductive in liquid or dried state
Formulated and manufactured domestically in the United States.
Key Use Cases:
Safety & Regulatory:
Fluoropolymer dissolved in fluorinated solvent
Non-Flammable (V-0, UL-94)
Non-Toxic, Non-Hazardous
Ozone Depletion Potential (ODP): 0.0
No Volatile Organic Compounds (VOCs)
UL Listed E541242 clone is available upon request. Contact us here.
Download VIRIDYN 101-X Technical Data Sheet
R&D samples only — for testing, evaluation and validation.
Please contact us (sales@viridyn.com) for Purchase Orders.
