VIRIDYN SH-1

SUPERHYDROPHOBIC (1-Step Coating)

VIRIDYN SH-1: superhydrophobic coating for 5G antenna, radomes, ESA, flat panels to prevent rain fade. Significantly reduces snow & ice accumulation. Trusted by industry leaders. Dedicated to the Indian market. Shipping globally.

Application methods: Air-cured coating formulated for spray, brush or roll application.

Water contact angle: 140° to 165°

Testing data: Client-reported water contact angle versus exposure time in a rapid ageing environmental chamber show the following:

  • 1 year (7 days in chamber): 145°

  • 5 years (25 days in chamber): 144°

  • 10 years (48 days in chamber): 138°

  • 15 years (72 days in chamber): 119°

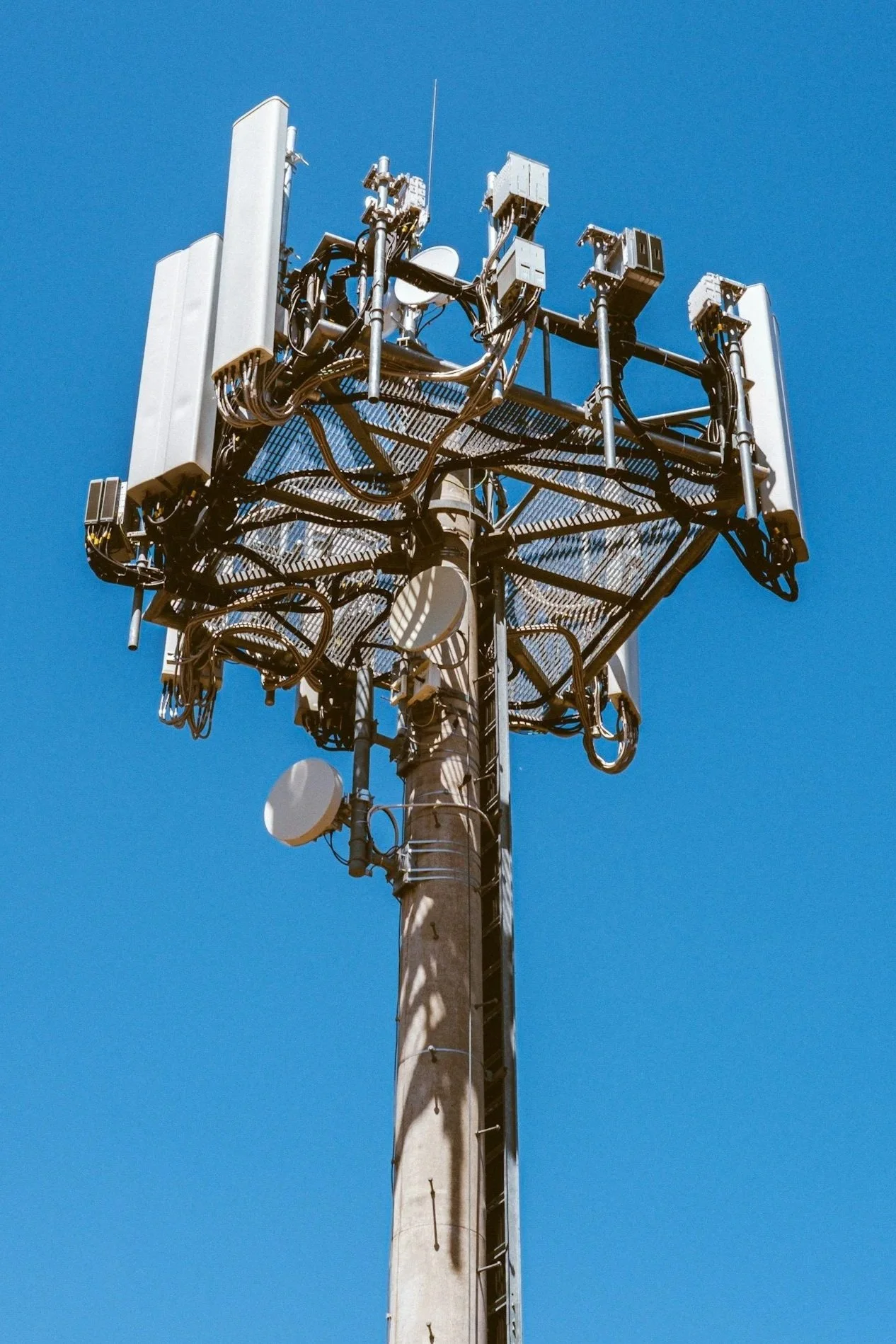

VIRIDYN SH-1 is a superhydrophobic 1-step coating used on marine and ground-based microwave antenna, 5G antenna, radomes and other telecom gear to prevent rain fade. SH-1 is durable, significantly reducing snow and ice accumulation.

Key Features & Benefits

RF Transparent: VIRIDYN SH-1 coatings allow radio frequency signals to pass through with minimal interference.

Rain Fade Reduction: Helps mitigate signal attenuation caused by rain, ice, and snow.

Minimizes Signal Loss: Effective in Ku and Ka bands to ensure optimal performance.

Prevents Water Film Formation: Eliminates the risk of signal distortion due to moisture buildup.

Major Applications

Protects Satellite and Antenna Equipment: Reduces signal loss for satellite dishes, radomes, antenna arrays, and flat panel antennas.

Improves Performance of Environmental Sensors: Reduces signal attenuation on wind and radiometric sensors in wet conditions.

Prevents Ice and Snow Buildup: Protects mid-path passive reflectors and repeaters.

Shields Moisture-Sensitive Equipment: Safeguards circuit boards, motors, switches, and connectors.

VIRIDYN SH-1 is a 1-step, air-dry, superhydrophobic coating.

  • When coated with VIRIDYN SH-1, water forms beads and rolls-off the surface. This prevents water-film formation and reduces ice build-up.

  • The coated surface is frosty in appearance due to nanoparticles on the surface. Super-hydrophobic performance is retained under most conditions and for extended periods of time.

  • This paint is used for anti-wetting, anti-icing, and anti-snow applications.

  • VIRIDYN SH-1 repels rain, ice, and snow for years. The VIRIDYN SH-1 coated surface may be washed with a hose spray, but handling or rubbing it, will reduce performance.

  • Spray application provides the best appearance and most consistent results. Coverage will vary by thickness of coating applied. One gallon covers 200 to 400 square feet..

    • Application: Roll-on (gravity feed HVLP for large projects)

    • Drying time: 2 hours

    • Colors: Frosty-White (Frosty-Tan and Frosty-Gray available)

    • Flammable solvents: yes

    • Storage temperature: 20-30°C

    • Shelf life: 1 year

    • Durability: 1 - 5 years (varies based on environmental conditions)

    • Dielectric constant: 3 at 100 MHz

    • Electrical resistivity: ~2 tera ohms

    • Rework-ability: Easy to remove and rework

    • Thickness: ~20 micrometers
